A question for you guys. When my CCKW was restored, I removed the post-war blinkers that had been rigged up. (mine was an Army of the Netherlands return). I wanted my CCKW to be in it's original configuration. The problem is the visibility from the perspective of vehicles following me is poor when I give the proper hand signals. Hand signals are great when driving a jeep but nearly as effective in the CCKW. My question is do most of you have blinkers? I've considered using a flag attached to a thick dowel rod so the vehicles behind me can see my intentions on left turn, stopping etc. What do you guys do?
Hammerhead
CCKW Visibility
-
- First Lieutenant
- Posts: 164
- Joined: Sun Sep 03, 2006 9:06 am
- Location: SE Missouri, USA
CCKW Visibility
1944 GMC CCKW 353, 1943 BEN-HUR Trailer
1943 WC-52, 1944 WC-54 (dod 4/19/44), 1945 Willys MB,
4/44 Bantam T3, MVPA 12610, NRA life Member
1943 WC-52, 1944 WC-54 (dod 4/19/44), 1945 Willys MB,
4/44 Bantam T3, MVPA 12610, NRA life Member
-
- Brigadier General
- Posts: 2493
- Joined: Thu Jun 08, 2006 1:10 am
- Location: Hampden, ME
You have an antique vehicle, hand signals are the norm, and if you drive according to your registration and antique insurance, myou should not have much traffic exposure. It is a parade vehicle, remember?
44 MB 356378- 54 M-38A1-41 CCKW 352-51 M-37-42TW6-45MBT-43 M1 BOMB LIFT (WEAVER)- RECORD SETTING HONOR GRADUATE Wheeled Vehicle Mechanics School, U.S. ARMY 1960 - US ARMY ORDNANCE SCHOOL 1962 - MVPA 1064 - RED BALL CHAPTER - PHONY VETERAN HEADHUNTER - ARMY FIXED & ROTARY WING MECHANIC/CREWCHIEF-STILL FIT WARBIRD COCKPITS
-
- Lieutenant Colonel
- Posts: 981
- Joined: Thu Jun 08, 2006 1:10 am
- Location: Kennebunkport, Maine
I live in southern Maine. An area frequented by LOADS of tourists,and I use all my vehicles quite often during the summer months,therefore 2 mirrors and turn signals are almost a must ( for safety and courtesy ) so I have added turn signals.
The installation is as follows, I contacted Joe Hall from Vintage Wireing of Maine and he fabbed an additional harness that I ran along side my original wires I added a set of military style rear tail lites below the originals and a set of 50s style (arrow ) lites in the grill. Power is taken from the brake lite switch ,so there is no permanant holes or cuts in the harness or body so I can revert to the original at any time.And the tourists DO KNOW where I'm going at all intersections Especially going to and from shows and parades
Hope this helps
John
The installation is as follows, I contacted Joe Hall from Vintage Wireing of Maine and he fabbed an additional harness that I ran along side my original wires I added a set of military style rear tail lites below the originals and a set of 50s style (arrow ) lites in the grill. Power is taken from the brake lite switch ,so there is no permanant holes or cuts in the harness or body so I can revert to the original at any time.And the tourists DO KNOW where I'm going at all intersections Especially going to and from shows and parades
Hope this helps
John
42 Chevy G7117
44 Ford M20 armored car
44 CCKW 353 A1 660 gal Tanker
45 CCKW 353 B2 Air-portable
Ben Hur 1 ton trailer
MVPA#26900
44 Ford M20 armored car
44 CCKW 353 A1 660 gal Tanker
45 CCKW 353 B2 Air-portable
Ben Hur 1 ton trailer
MVPA#26900
-
- Brigadier General
- Posts: 2367
- Joined: Thu Jun 08, 2006 1:10 am
- Location: Tilton, NH
- Contact:
I also have added signals to all my vehicles.
It is not as extensive as John has accomplished. I replace the right rear taillight (blackout bulbs only) with a left rear asssembly complete. It gives me normal running lights all the time. I then added motor cycle front signals to the diagonal front fender support. (It is tucked far enough up under the fender so it is barely noticeable) I painted the housings OD. I then added a column switch also painted OD.
I live in a heavily traveled tourist area full of "flatlanders" on weekends. Some of the worst drivers in the US. They now can't say "but he didn't have any signals". Never mind that it is a huge CCKW, or a Chevy Fire Truck, or an Ambulance with a Big Red Cross on the Rear.
I also do the same rear tailight switch to my trailers so I have signals on
them too!

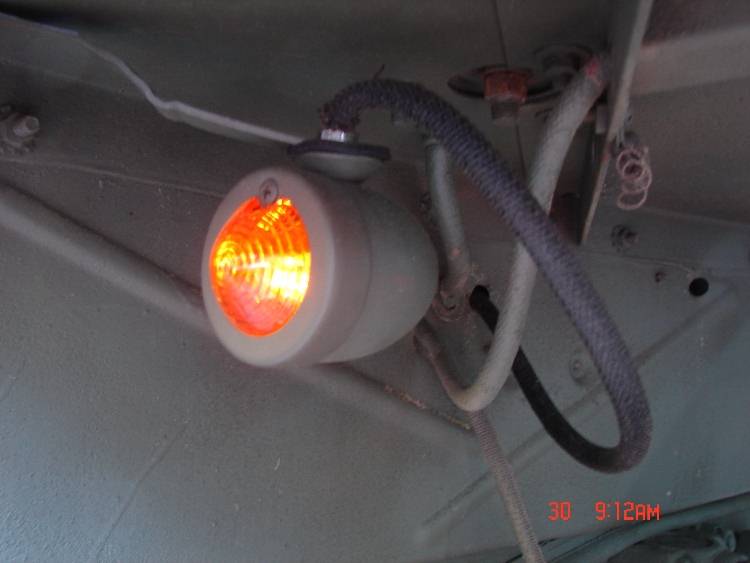

Below is a picture of one on my Dodge Ambulance. The mount is different than the GM products.
Bill
It is not as extensive as John has accomplished. I replace the right rear taillight (blackout bulbs only) with a left rear asssembly complete. It gives me normal running lights all the time. I then added motor cycle front signals to the diagonal front fender support. (It is tucked far enough up under the fender so it is barely noticeable) I painted the housings OD. I then added a column switch also painted OD.
I live in a heavily traveled tourist area full of "flatlanders" on weekends. Some of the worst drivers in the US. They now can't say "but he didn't have any signals". Never mind that it is a huge CCKW, or a Chevy Fire Truck, or an Ambulance with a Big Red Cross on the Rear.
I also do the same rear tailight switch to my trailers so I have signals on
them too!
Below is a picture of one on my Dodge Ambulance. The mount is different than the GM products.
Bill
1945 GMC DUKW
1942 Chevy 125 Crash Truck from Dow AAFB,
1944 Chevy 325 Fire Truck
1942 WC-54 Ambulance
1944 M29C Weasel (x6)
1945 CCKW 353 A2 Open Cab "Air-portable"
1943 M5 High Speed Tractor
1942 Sperry Searchlight setup with GE Generator
1942 M-1 Fruehauf Searchlight Trailer (G221)
1942 M-17 Fruehauf Quad 50 Trailer (G221)
1942 M-10 Ammo Trailer (x3)
194? Steel Ben Hur (x4) 194? Wood Ben Hur (x2)
1945 Case VAIW-3 Aircraft Tug
1943 Case VAI USAAF with Mower
1944 Clark CA-1 Airborne Dozer
1944 PE-95G, 1944 PE-99B
1942 Chevy 125 Crash Truck from Dow AAFB,
1944 Chevy 325 Fire Truck
1942 WC-54 Ambulance
1944 M29C Weasel (x6)
1945 CCKW 353 A2 Open Cab "Air-portable"
1943 M5 High Speed Tractor
1942 Sperry Searchlight setup with GE Generator
1942 M-1 Fruehauf Searchlight Trailer (G221)
1942 M-17 Fruehauf Quad 50 Trailer (G221)
1942 M-10 Ammo Trailer (x3)
194? Steel Ben Hur (x4) 194? Wood Ben Hur (x2)
1945 Case VAIW-3 Aircraft Tug
1943 Case VAI USAAF with Mower
1944 Clark CA-1 Airborne Dozer
1944 PE-95G, 1944 PE-99B
- Chris_M
- Captain
- Posts: 203
- Joined: Fri Sep 14, 2007 10:55 am
- Location: Near Nuremberg, Germany
- Contact:
-
- Brigadier General
- Posts: 2400
- Joined: Thu Jun 08, 2006 1:10 am
- Location: Pembroke NH
- Contact:
I too added intergreted (with the stoplight) directionals and added another WW2 light on the passengers side. I too have the front directionals tucked up under the front fenders.
I have driven behind my wife in the GPW and can barely see her hand signals... It will get directionals this coming year
Ask yourself, how many kids know what hand signals are (especially when they are text messaging...)
I have driven behind my wife in the GPW and can barely see her hand signals... It will get directionals this coming year
Ask yourself, how many kids know what hand signals are (especially when they are text messaging...)
Dr Deuce Over 50,000 driven miles in a CCKW
1942 CCKW closed cab shopvan
1943 CCKW closed cab cargo w/M32 MG mount
1944 CCKW open cab LeRoi Kompressor
1944 CCKW open cab F1 Aircraft fueler tanker
1945 CCKW open cab cargo w/artic cab
1942 Chev cargo
1942 Chev K51 Panel
1944 Chev M6 Bomb Truck
1942 GPW Jeep
http://home.comcast.net/~cckw/wsb/html/ ... 59870.html
1942 CCKW closed cab shopvan
1943 CCKW closed cab cargo w/M32 MG mount
1944 CCKW open cab LeRoi Kompressor
1944 CCKW open cab F1 Aircraft fueler tanker
1945 CCKW open cab cargo w/artic cab
1942 Chev cargo
1942 Chev K51 Panel
1944 Chev M6 Bomb Truck
1942 GPW Jeep
http://home.comcast.net/~cckw/wsb/html/ ... 59870.html
-
- First Lieutenant
- Posts: 133
- Joined: Thu Jun 08, 2006 1:10 am
- Location: PA
I added them to my CCKW when I rewired my truck this past summer. I purchased a repro harness from Joe (VintageWiring of ME) and had him add the blinker set up. I then used to cherry lights in the back on both sides. They are now brake lights and blinkers. It looks original and works well. The front blinkers are the black out lights.
Rob
41 WLA (project bike)
42 57mm Anti Tank Gun
42 WC52
42 CCKW 353 Open Cab
43 Diamond T M3 Half-Track
43 WC51
1 Ton Ben Hur Trailer
41 WLA (project bike)
42 57mm Anti Tank Gun
42 WC52
42 CCKW 353 Open Cab
43 Diamond T M3 Half-Track
43 WC51
1 Ton Ben Hur Trailer
-
- Brigadier General
- Posts: 2595
- Joined: Thu Jun 08, 2006 1:10 am
- Location: San Antonio, Texas
Cool set up's and they look original to the untrained eye. A lot of drivers today do not know what the hand signals mean.
52 M38 Willy's
Former owner and restorer of CCKW353 " Betty Boop"
proud father of a career Army officer/Blackhawk pilot/ War in Iraq veteran
Retired high school history teacher at Lt. Colonel Robert G. Cole CMH High School, Fort Sam Houston Texas
proud great grandson of four Confederate soldiers.
great great grandson of a War of 1812 veteran
great great great grandson of 2 American Revolutionary war veterans
Former owner and restorer of CCKW353 " Betty Boop"
proud father of a career Army officer/Blackhawk pilot/ War in Iraq veteran
Retired high school history teacher at Lt. Colonel Robert G. Cole CMH High School, Fort Sam Houston Texas
proud great grandson of four Confederate soldiers.
great great grandson of a War of 1812 veteran
great great great grandson of 2 American Revolutionary war veterans
-
- First Lieutenant
- Posts: 164
- Joined: Sun Sep 03, 2006 9:06 am
- Location: SE Missouri, USA
Thanks guys for all the suggestions. I have been worried for quite some time that I needed to do something to enhance safe driving in my vehicles. I've already had some close calls and knew I had to do something different. I'll be giving Vintage Wiring of Maine a call! That's where I've gotten all my wiring harnesses from; good people to work with! Thanks again, Hammerhead
